Basic properties
Fiber Core Material: PMMA
Cladding Material: Fluorinated Polymer
Jacketing Material: PE
Standard connector: 1x HFBR 4503Z to 2x HFBR 4513Z
Optical Instruction: Step Index Model
Numerical Aperture: 0.5
Allowable Bend Radius: No less than ten times of optical fiber diameter
Core Refractive Index: 1.492
HS Code: 8544421100

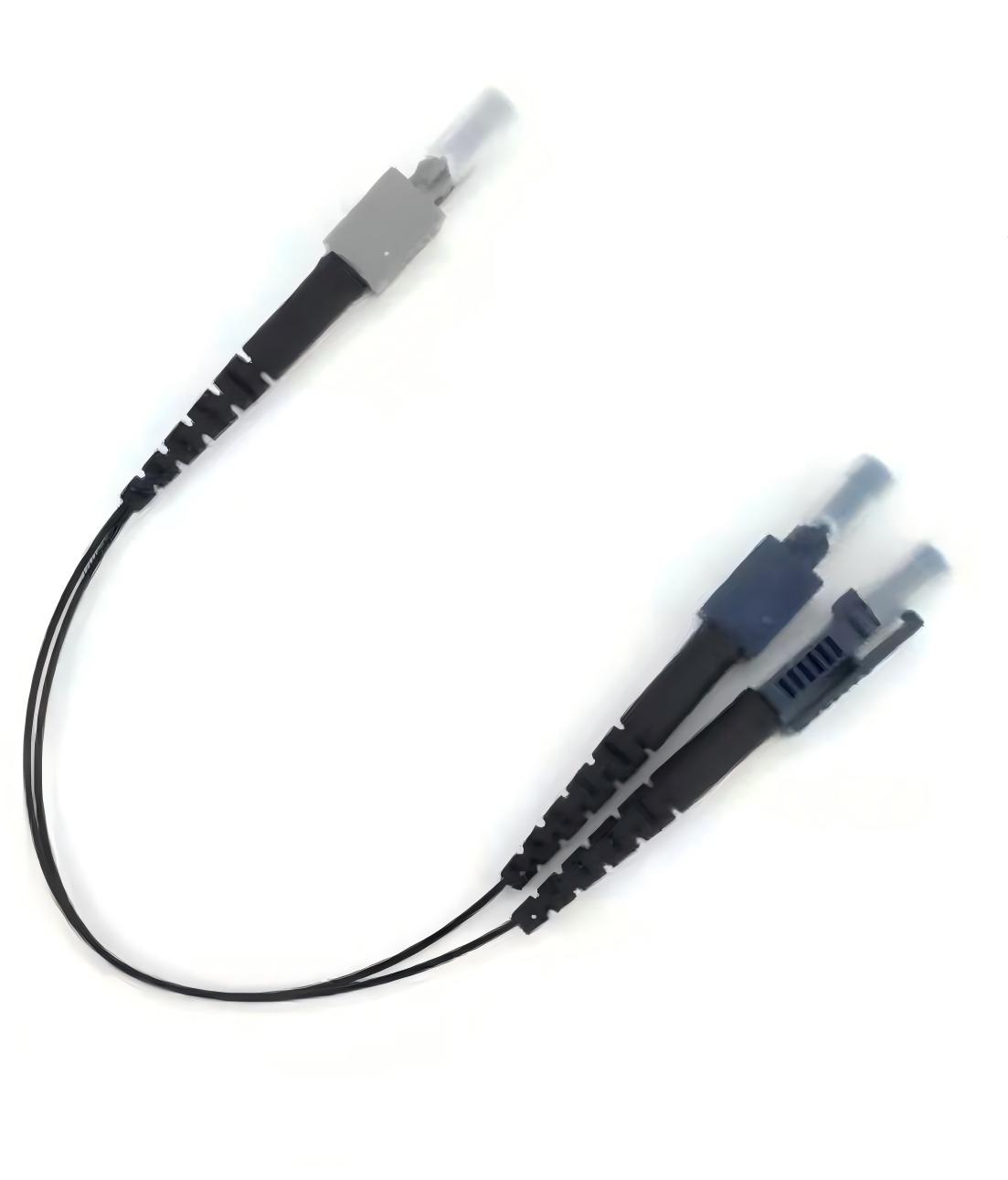

Item：Broadcom HFBR-4503/4513 Polymer Optical Fiber Splitter Cable for green energy
Basic Information:
Series: Broadcom Avago Versatile Link (HFBR‑45XXZ)
Connector Style: Duplex Latching, 1x HFBR‑4503Z (Grey) & 2x HFBR‑4513Z (Blue)
Fiber Compatibility: 0.5 mm core / 2.2 / 4.4 mm jacket POF-duplex
Temp Range: –40 °C to +85 °C
RoHS compliant (UL94 V‑0 flame standard optional)
Introduction:

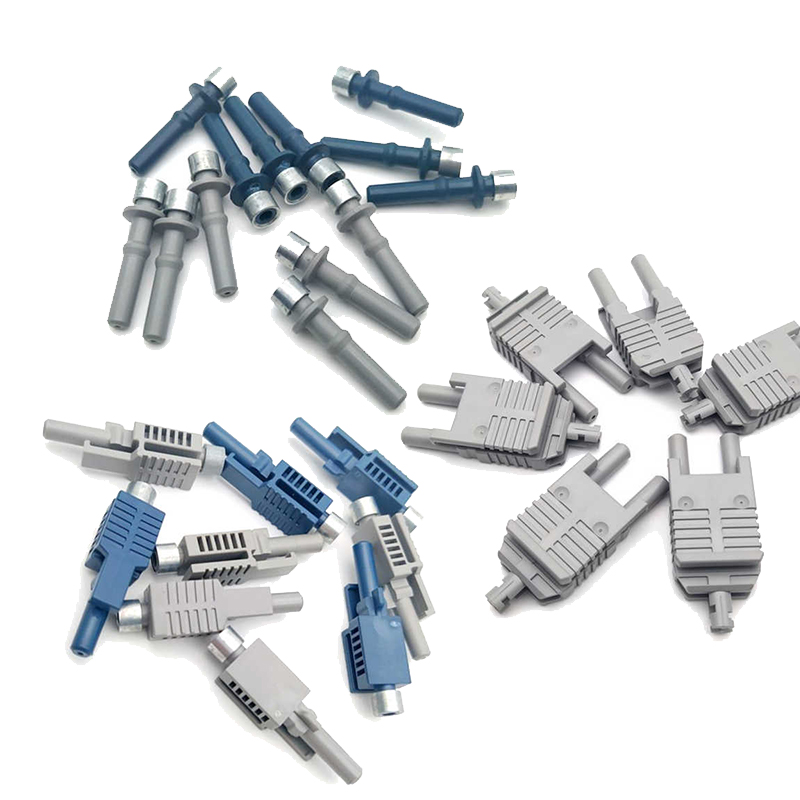

Broadcom (formerly Avago) V-Pin HFBR sereis plastic optical fiber (POF) connectors are widely recognized for their reliability and ease of use in industrial and data communication applications. The series includes:
Simplex plug-in connectors: HFBR-4501Z (gray) / HFBR-4511Z (blue)
Simplex snap-in connectors: HFBR-4503Z / HFBR-4513Z
Duplex snap-in connectors: HFBR-4506Z / HFBR-4516Z
Simplex in-line plastic snap-in connectors: HFBR-4531Z / HFBR-4533Z / HFBR-4535Z
Simplex plug-in plastic snap-in connector: HFBR-4532Z
Most models feature metal crimp rings for secure fiber termination, except the in-line and plug-in plastic types which use an integrated snap-in plastic design.
The HFBR‑4503Z/4513Z connectors, part of Broadcom’s Versatile Link series, are low-cost yet robust options. With snap-in coupling, fast assembly, and color-coded housings, they are ideally suited for high-volume industrial use.
These V-Pin connectors are extensively used in demanding environments such as ABB inverters, Hitachi drilling systems, and Siemens bus networks, offering excellent EMI immunity and electrical isolation.
Features:
EMI-free, reliable signal transmission
Easy snap‑in friction-style coupling
Standard crimp-ring included for secure retention
Flame-retardant VALOX material rated UL94 V‑0
Operating from –40 °C to +85 °C, suitable for rugged environments
Fully RoHS compliant, ideal for global deployment
Technical Parameters
| Parameters | Unit | Numerical value |
| Fiber diameter | mm | 0.5 |
| Cable diameter | mm | 2.2/4.4 (±0.1) |
| Fiber material | — | PMMA |
| Jacket material | — | PE |
| Attenuation | dB/m | ≤0.2 |
| Insertion loss | dB | <0.5 |
| NA | — | 0.5 |
| Wavelength | nm | 650 |
| Incident angle | — | ≤60° |
| Bandwidth | MHz·100m | ≥10 |
| Cable length | mtr | up to 100mtr |
| Bend radius | — | ≥10 times of fiber dia. |
| Operating Temperature | ℃ | -45~80 |
| Storage Temperature | ℃ | -45~80 |
| Refractive index | — | Step index |

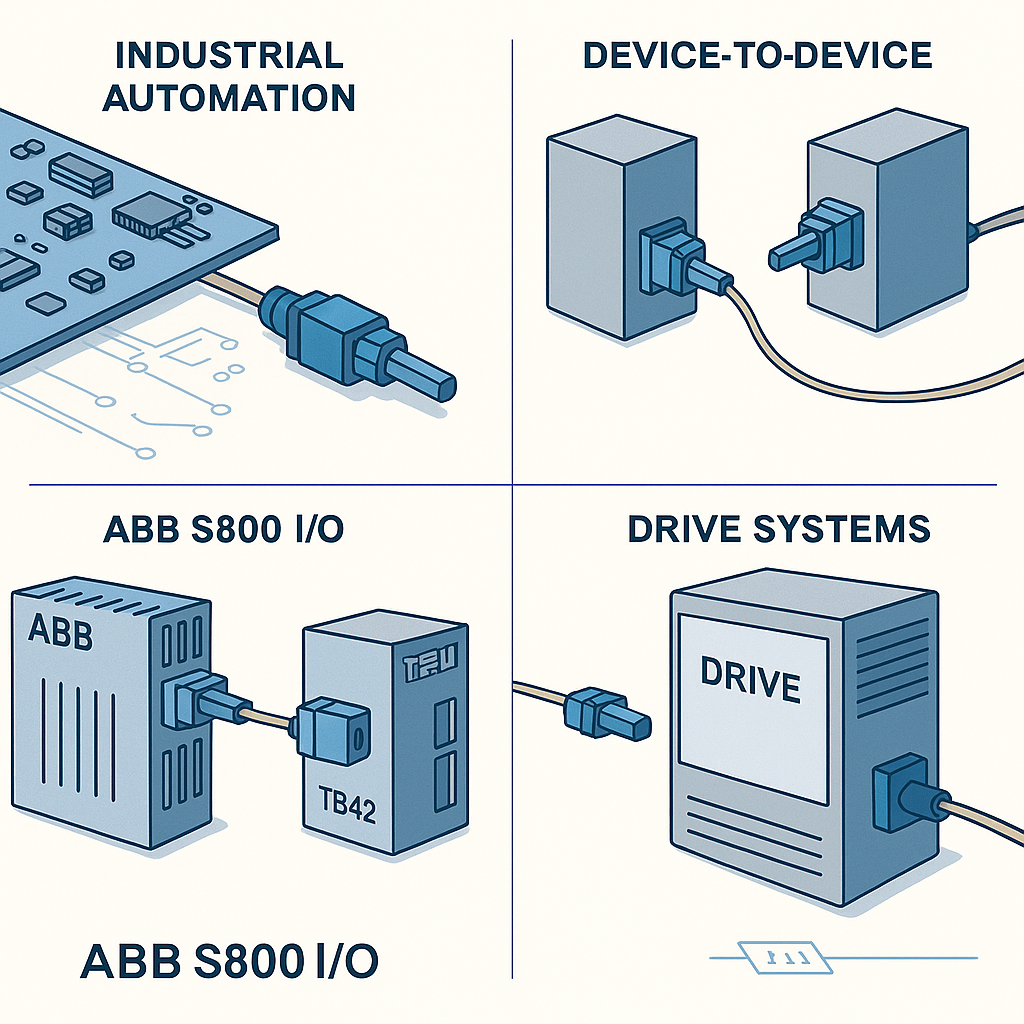

Applications
Factory/industrial data links & control networks
Board‑to‑board, rack‑to‑rack interconnects
High-voltage isolation and EMI/RFI immunity systems
Audio/visual and medical instrument connections
