Item：DCVZ2-1000
Details：

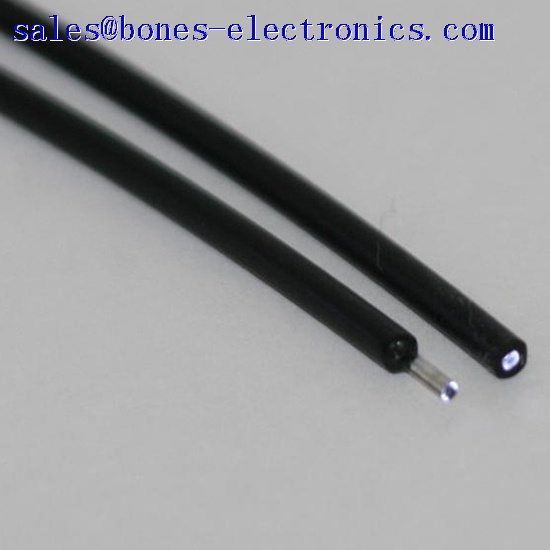

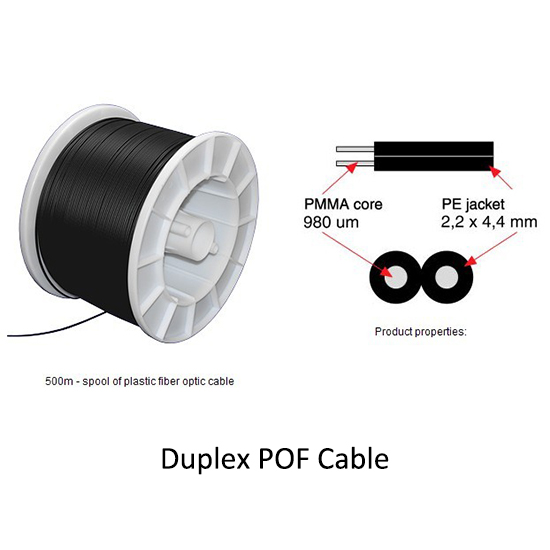

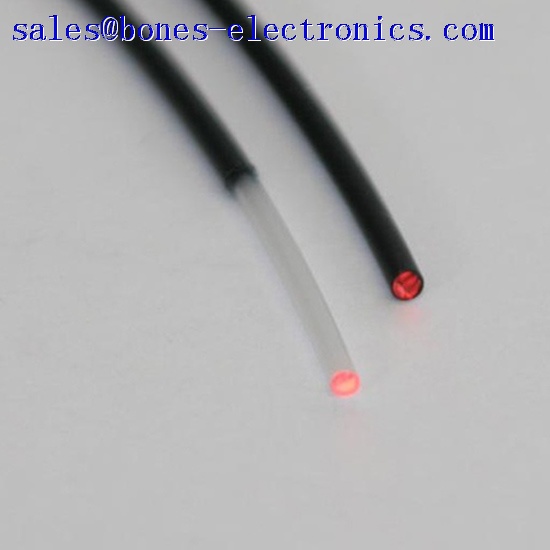

Equal to TCF-1000W Flame Retardant POF Cable, Duplex 1.0 mm core for Industrial Application
– 40 ~ 85 Polyethylene Jacket 2.2 x 4.4 mm OD jacket,
Standard Spool Length: 500M
MFG P/N: CCVZ2-1000
Applications: Flexible industrial applications with small dynamic stress. UV and flame resistant cable for general purpose industrial temperature data and sensor applications. Lowest cost of all the industrial cable options.
| tructure | ||||||
| Core Material | Polymethyl-Methacrylate Resin | |||||
| Cladding Material | Fluorinated Polymer | |||||
| Core Refractive Index | 1.49 | |||||
| Refractive Index Profile | Step-index | |||||
| Numerical Aperture | .5 | |||||
| Number of Fibers | 1 | |||||
| Unit | Value | |||||
| Core Diameter | μm | 920 – 1040 | ||||
| Cladding Diameter | μm | 940 – 1060 | ||||
| Approximate Weight | g/m | 11 | ||||
| Jacket | ||||||
| Material and Color | Polyurethane/Red | |||||
| Indication on Jacket | Customized | |||||
| Unit | Value | |||||
| Sub-unit Diameter | mm | Polyethylene | ||||
| Outer Diameter | mm | 3.6 | ||||
| Fiber Tensile Strength | N | 100 | ||||
| Performance | Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | ||
| Maximum Rating |
Storage Temperature | No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -40 to 85 | |
| Operating Temperature | No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -20 to+70 | ||
| No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | + 60 Max. | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .19 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | .21 Max. | ||
| Mechanical Characteristics |
Minimum Bend Radius | Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 50 mm | |
| Tensile Strength | Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 100 | ||
