Basic properties
Fiber Core Material: PMMA
Cladding Material: Fluorinated Polymer
Jacketing Material: PE
Standard connector: HFBR 4501/4511
Optical Instruction: Step Index Model
Numerical Aperture: 0.5
Allowable Bend Radius: No less than ten times of optical fiber diameter
Core Refractive Index: 1.492
HS Code: 8544421100

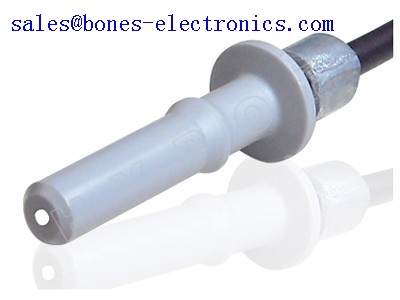

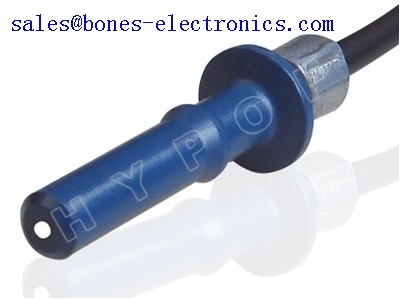

Item：HFBR4501/4511
Details：

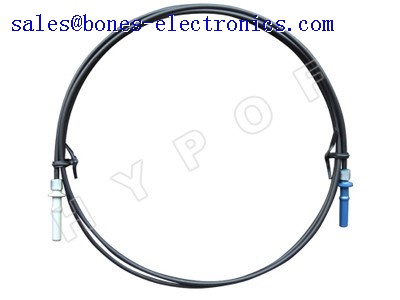

Polymer Optical Fiber-POF Patch Cord-Avago HFBR 4501/4511 Patch Cord
Introduction:
Avago’s simplex and duplex connectors for POF patchcords are low-cost for polymer optical fiber (POF), which are compatible with any versatile link series transmitters and receivers. These Avago POF connectors use a simple latching and non-latching, snap-together concept which eliminates the need for crimping.
The Avago POF connectors can be used for automotive networks, gaming and medical equipment and industrial control and voltage isolation.The Avago HFBR-R/EXXYYZ series of plastic optic fiber cables(POF cables) are constructed of a single step-index fiber sheathed in a black polyethylene jacket. The duplex fiber consists of two simplex fiber cables joined with a zipcord web.
Features:
EMI-free, reliable signal transmission
Easy snap‑in friction-style coupling
Standard crimp-ring included for secure retention
Flame-retardant VALOX material rated UL94 V‑0
Operating from –40 °C to +85 °C, suitable for rugged environments
Fully RoHS compliant, ideal for global deployment
Technical Parameters
| Parameters | Unit | Numerical value |
| Fiber diameter | mm | 1.0 |
| Cable diameter | mm | 2.2±0.1 |
| Fiber material | — | PMMA |
| Jacket material | — | PE |
| Attenuation | dB/m | ≤0.2 |
| Insertion loss | dB | <0.5 |
| NA | — | 0.5 |
| Wavelength | nm | 650 |
| Incident angle | — | ≤60° |
| Bandwidth | MHz·100m | ≥10 |
| Cable length | m | 1~100mto order |
| Bend radius | — | ≥10 times of fiber dia. |
| Operating temperature | ℃ | -45~80 |
| Storage temperature | ℃ | -45~80 |
| Refractive index | — | Step index |
Applications
Factory/industrial data links & control networks
Board‑to‑board, rack‑to‑rack interconnects
High-voltage isolation and EMI/RFI immunity systems
Audio/visual and medical instrument connections
