Application:

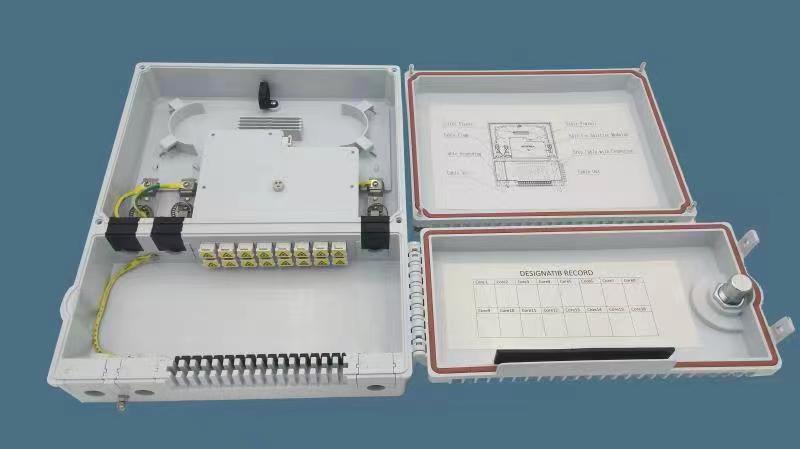

This product integrates optical fiber splicing, splitting, and wiring. It can realize the cable direct or branch connection.
Feature:
1 High quality of ABS plastic
2 Anti-UV,shocking resistance
3 Clear area for splicing and distribution
Technical index:
Fiber radius of curvature: :≥30mm
Additional loss：≤0.01dB
Working Temperature: – 10℃ + 70℃
Side pressure : ≥2000N / 10 cm
Impact resistance：≥20N.m
Protection level: IP65
| Specification | Details |
|---|---|
| Model No. | FDB0416A |
| Packing dimension (mm) | 560×560×360/30pcs |
| Dimension (mm) | 231×152×59 |
| CBM (m³) | 0.113 |
| Weight (Kg) | 0.75 |
| Gross weight (Kg) | 24.1 |
| Cable inlet/outlet | 4/16 |
| Other information | |
| Cable diameter (mm) | ≤Φ12 |
| Mounting type | Wall mounting(standard), Pole mounting(optional) |
| Max splice capacity | 18 (single core) |
| Adapter type | SC simplex without lug (16pcs) |
| Max splitting | 1: 16 |
